Innovative technology for consistently high product quality
With our advanced product portfolio, manufacturers and technical centers worldwide we achieve outstanding quality and efficiency in turbocharger production. our systems are designed for versatile balancing, innovative testing and seamless integration into modern manufacturing and quality assurance environments.
Product portfolio
Xondo Series: Balancing Solutions for Turbocharger Rotors
Models: Xondo 010, Xondo 020, Xondo 050, Xondo 100, Xondo 200, Xondo 300, Xondo 400, Xondo 500
The Xondo series offers modular balancing machines for turbocharger components such as compressor wheels and turbine rotors. Designed for medium to high production volumes, Xondo systems provide highly accurate unbalance measurement and correction with semi-automatic or fully automatic operation. Fast changeovers, short cycle times and reliable process control ensure consistent balancing quality across a wide range of rotor types.
Xonos: High-Speed Balancing for Turbocharger Core Assemblies
Xonos is a compact high-speed balancing system for turbocharger core assemblies (CHRAs). Combining vibration and pulsation measurement with automatic unbalance correction, the machine delivers accurate balancing results under operating conditions. Depending on the application, Xonos can be configured for different turbocharger platforms and production requirements, making it suitable for OEM, remanufacturing and service environments.
Xento Series: Advanced High-Speed Balancing for Turbocharger Production
Models: Xento, Xento+
The Xento family provides high-speed balancing of turbocharger core assemblies with integrated vibration and pulsation analysis. Designed for demanding production environments, Xento systems combine automatic measurement, correction and process monitoring to achieve maximum quality and repeatability. Flexible configurations allow adaptation to different turbocharger types and manufacturing requirements.
Xano: Flexible Balancing for Quality Control, R&D and Small-Series-Production
Xano is a versatile balancing solution for compressor wheels and turbine rotors. With highly accurate measurement technology and manual loading, it is ideal for low- to medium-volume production, quality control, and research & development applications. Its flexible setup and fast changeover capabilities make Xano particularly suitable for prototype work, testing and specialized balancing tasks.
Key Features & Benefits
Precise, repeatable balancing for rotors, core assemblies and full modules
Modular design for flexible production requirements
Reliable service, training and quick spare parts delivery
Fast setup and intuitive operator interfaces
Scalable automation: from manual to fully automatic
Comprehensive quality data reporting and traceability
Product overview
Turbocharger compressor wheels
fully automatic
semi-automatic

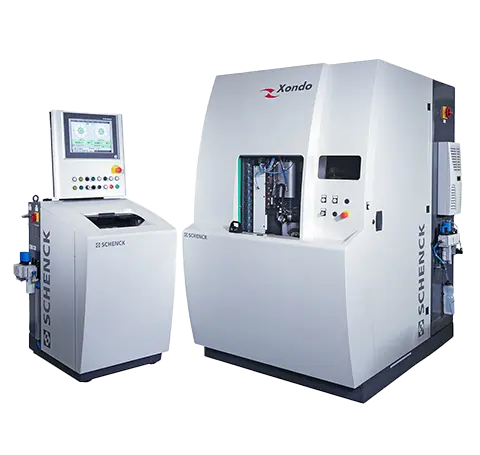

Xondo 010 - 500
Balancing machine for turbocharger core assemblies: The machines in the Xondo 010 - 500 series are suitable for high-precision measurement and exact correction of the dynamic unbalance of finished turbocharger compressor wheels in medium and high series production quantities. Unbalance measurement is carried out either fully automatically or semi-automatically by polar milling on two levels and with up to two correction processes. A loading gantry is available for loading and unloading.
- Maximum rotor weight: up to 1,500 g
- Maximum rotor diameter: up to 180 mm
- Measurement inaccuracy: up to 0.002 gmm/kg - depending on rotor size
- Cycle time: 25 to 60 s - depending on the machine version
Downloads
Turbocharger turbine rotor
fully automatic
semi-automatic

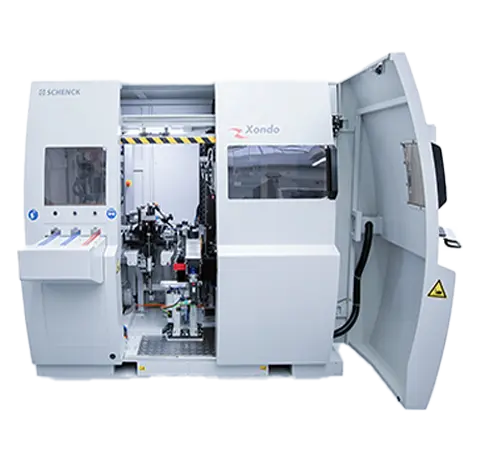

Xondo 020 - 400
Balancing machine for turbocharger turbine rotors: Our solution for measuring and correcting the dynamic unbalance of finished turbocharger turbine rotors are the balancing machines in the Xondo 020 to 400 series. They are particularly suitable for series production of medium and large quantities, with a choice of fully automatic or semi-automatic unbalance measurement and fully automatic unbalance correction by grinding on two levels and with several correction processes. Loading and unloading takes place via a loading gantry.
- Maximum rotor weight: up to 1,600 g
- Maximum rotor diameter: up to 125 mm
- Measurement inaccuracy: up to 0.3 gmm/kg - depending on rotor size
- Measuring time: 35 to 60 s - depending on the machine version
Downloads
turbocharger core assemblies
fully automatic

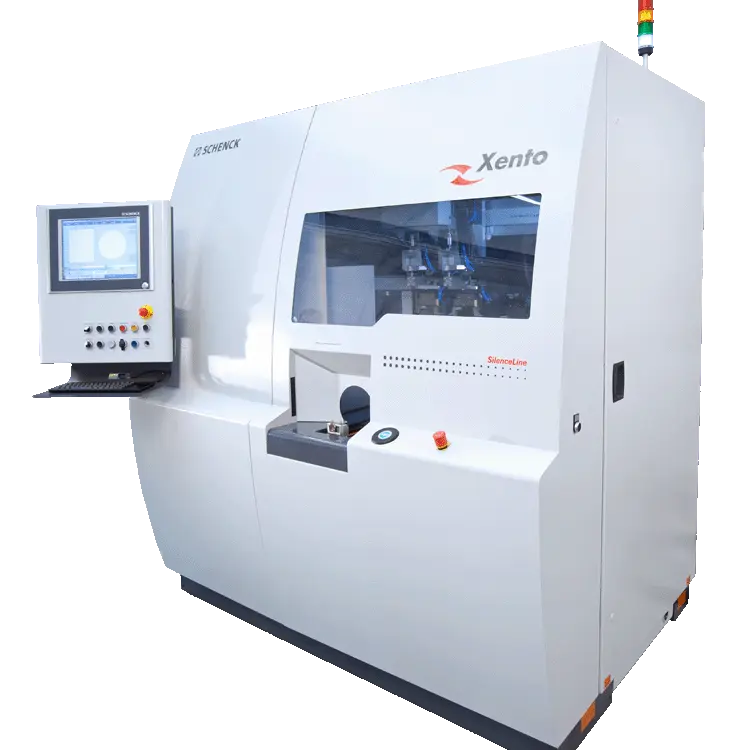

Xento
Balancing machine for turbocharger core assemblies: Xento is a fully automatic balancing machine for the measurement and correction of turbocharger core assemblies. The machine combines high-speed balancing, vibration analysis and pulsation measurement in a compact system. Automatic unbalance measurement and two-plane correction ensure optimized rotor performance and reduced vibration levels across the complete operating speed range. Integrated DMC scanning, shaft magnetization and automated handling enable efficient and reliable series production.
- Maximum rotor weight: up to 4 kg
- Maximum rotor diameter: up to 140 mm
- Balancing speed: up to 300,000 min⁻¹
- Cycle time: from 90 s, depending on initial unbalance
Downloads
Turbocharged fuselage groups
fully automatic
semi-automatic

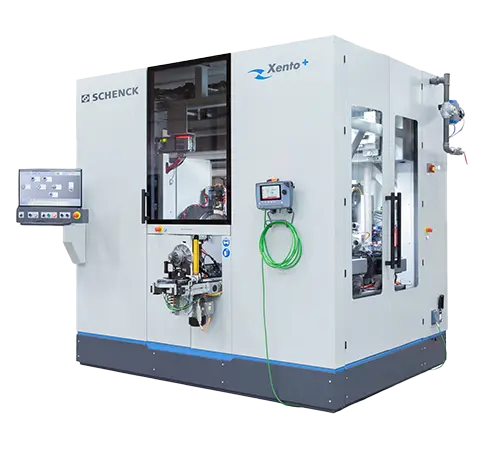

Xento+
Balancing machine for turbocharger core assemblies: State-of-the-art with automatic unbalance measurement and automatic unbalance correction, pulsation measurement and vibration analysis, the Xento and Xento+ balancing machines are suitable for vibration and pulsation measurement on turbocharger trunk assemblies, speed control and unbalance calculation in up to three planes. Their range of functions includes manual and automatic loading, DMC scanning, speed and angle measurement as well as two-plane correction by milling.
- Maximum rotor weight: up to 12 kg
- Maximum rotor diameter: up to 260 mm
- Balancing speed: up to 350,000 min -¹ - depending on machine version
- Cycle time: up to 70 s - depending on the machine version
Downloads
Turbocharged fuselage groups
fully automatic
semi-automatic

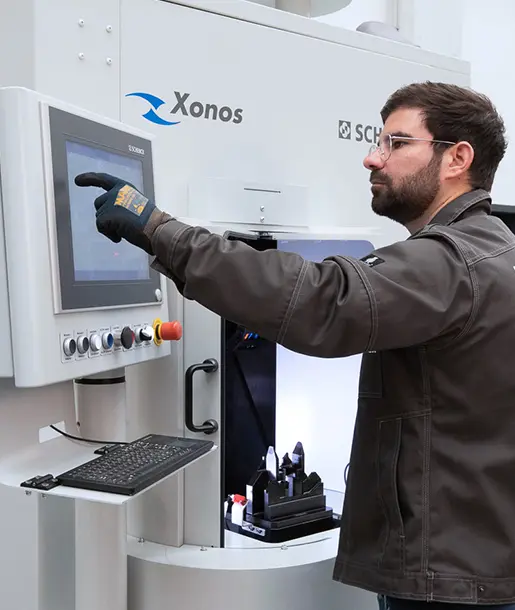

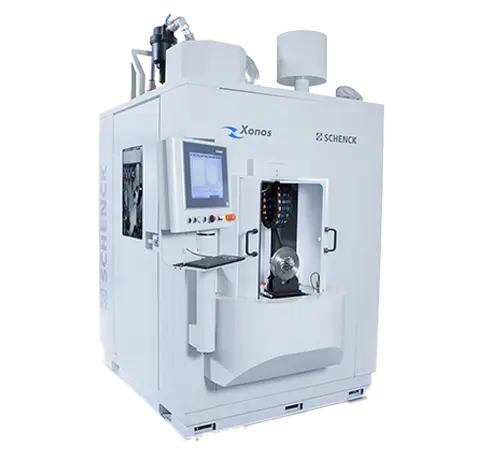

Xonos
Balancing machines for turbocharger core assemblies: With its compact design, integrated shaft magnetization and an oil lubrication system with parameter control, Xonos is a powerful and versatile balancing machine for turbocharger core assemblies. They are suitable for vibration and pulsation measurement, speed control and unbalance calculation in two planes and with DMC scanning, shaft magnetization for speed and angle measurement and two-plane balancing by milling in a single-station machine. Loading is manual or automatic.
- Maximum rotor weight: up to 16 kg
- Maximum rotor diameter: up to 300 mm
- Balancing speed: up to 250,000 min -¹ - depending on machine version
- Cycle time: up to 120 s
Downloads
Turbocharger turbine rotor
turbine rotors
manual

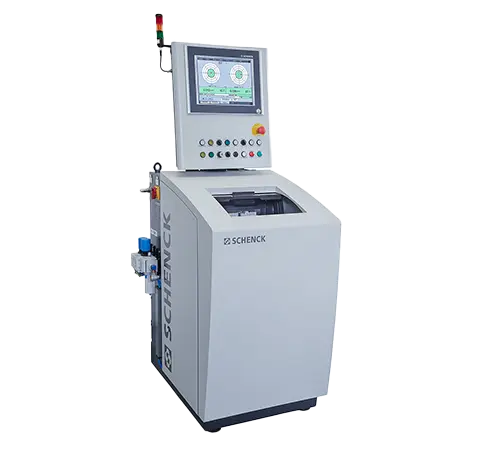

Xano
Balancing machine for turbocharger compressor wheels and turbine rotors: Xano is the optimum solution for measuring the unbalance of finished impellers in series production of low and medium quantities in quality control and in research and development, with unbalance measurement on two levels and unbalance correction in several work steps using an optional correction unit. Loading and unloading is done manually.
- Maximum rotor weight: up to 5,4 kg
- Maximum rotor diameter: up to 180 mm
- Balancing speed: up to 3,200 min -¹ - depending on machine version
- Measuring accuracy: up to 0.002 gmm/kg - depending on machine design
Downloads
Industry Applications Our turbocharger technolgies serve different industries
Datatechnic turbocharger solutions are used worldwide in automotive manufacturing, commercial vehicle, engine production and turbocharger remanufacturing. Quality assurance labs and research facilities also benefit from our precise balancing and testing systems. Wherever high-speed rotating components are essential. Datatechnic delivers reliable, industry-focused technology for manufacturing, quality control and development.
